Type 66 and 67 Stuffing Tubes

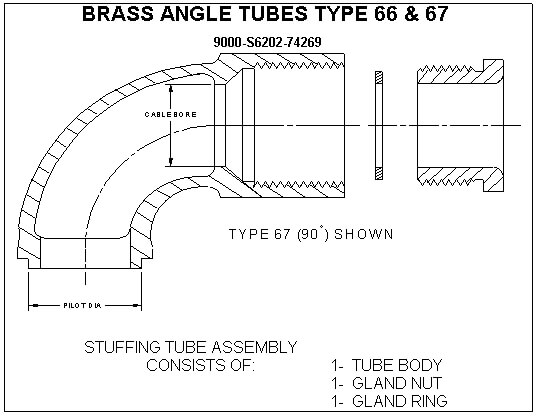

View All Military & Commercial Stuffing Tubes MIL S-24235 Type 66 and 67 Stuffing Tubes

Type 66
Type 67

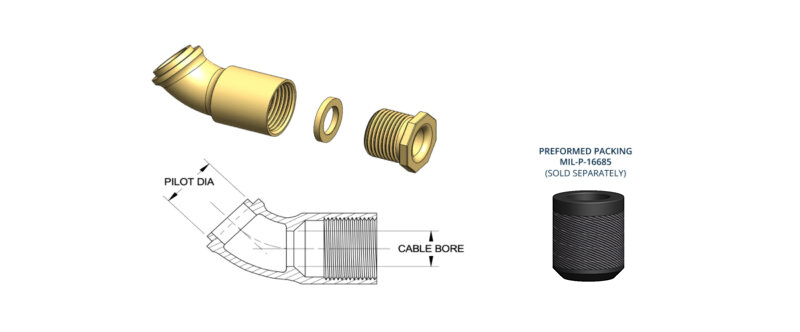

TYPE 66 45° BRASS STUFFING TUBES

9000-S6202-74269

Includes: Brass Tube, Gland Nut, and Gland Ring

TYPE-66-STUFFING-TUBE-FOR-ELECTRICAL-CABLES-ENTERING-SHEET-METAL-ENCLOSURES-800x332
Download Data Sheet

SIZE CABLE BORE PILOT DIAMETER SYMBOL # TYPE – SIZE PENN EL PART # PERFORMED PACKING #
A 0.406 0.660 1945.1 TYPE 66 – SIZE A A66-BR-A MP-BA-A2
B 0.515 0.660 1945.2 TYPE 66 – SIZE B A66-BR-B MP-BA-B2
C 0.640 0.957 1945.3 TYPE 66 – SIZE C A66-BR-C MP-BA-C2
D 0.750 0.957 1945.4 TYPE 66 – SIZE D A66-BR-D MP-BA-D2
E 0.812 0.957 1945.5 TYPE 66 – SIZE E A66-BR-E MP-BA-E2
F 0.843 0.957 1945.6 TYPE 66 – SIZE F A66-BR-F MP-BA-F2
G 0.953 1.207 1945.7 TYPE 66 – SIZE G A66-BR-G MP-BA-G2
J 1.062 1.207 1945.8 TYPE 66 – SIZE J A66-BR-J MP-BA-J2
K 1.171 1.207 1945.9 TYPE 66 – SIZE K A66-BR-K MP-BA-K2
L 1.265 1.551 1945.10 TYPE 66 – SIZE L A66-BR-L MP-BA-L2
M 1.406 1.551 1945.11 TYPE 66 – SIZE M A66-BR-M MP-BA-M2
N 1.515 1.551 1945.12 TYPE 66 – SIZE N A66-BR-N MP-BA-N2
P 1.625 1.951 1945.13 TYPE 66 – SIZE P A66-AL-P MP-BA-P2
R 1.750 1.951 1945.14 TYPE 66 – SIZE R A66-BR-R MP-BA-R2
S 1.875 1.951 1945.15 TYPE 66 – SIZE S A66-BR-S MP-BA-S2
T 2.062 2.076 1945.16 TYPE 66 – SIZE T A66-BR-T MP-BA-T2
V 2.187 2.076 1945.17 TYPE 66 – SIZE V A66-BR-V MP-BA-V2

Back to Top

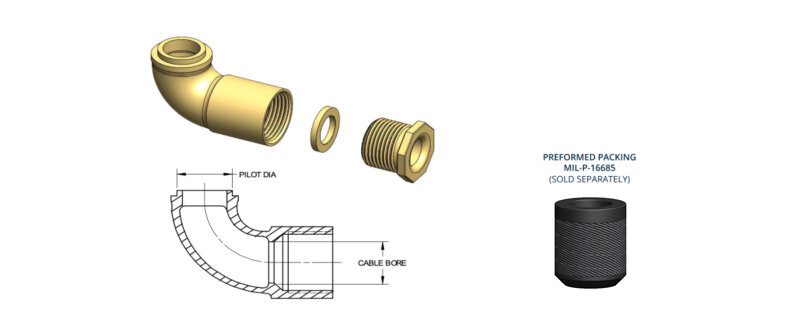

TYPE 67 90° BRASS STUFFING TUBES

9000-S6292-74269

Includes: Brass Tube, Gland Nut,and Gland Ring

TYPE-67-STUFFING-TUBE-FOR-ELECTRICAL-CABLES-ENTERING-SHEET-METAL-ENCLOSURES-800x332
Download Data Sheet

SIZE CABLE BORE PILOT DIAMETER SYMBOL # TYPE – SIZE PENN EL PART # PERFORMED PACKING #
A 0.406 0.660 1990.1 TYPE 67 – SIZE A A67-BR-A MP-BA-A2
B 0.515 0.660 1990.2 TYPE 67 – SIZE B A67-BR-B MP-BA-B2
C 0.640 0.957 1990.3 TYPE 67 – SIZE C A67-BR-C MP-BA-C2
D 0.750 0.957 1990.4 TYPE 67 – SIZE D A67-BR-D MP-BA-D2
E 0.812 0.957 1990.5 TYPE 67 – SIZE E A67-BR-E MP-BA-E2
F 0.843 0.957 1990.6 TYPE 67 – SIZE F A67-BR-F MP-BA-F2
G 0.953 1.207 1990.7 TYPE 67 – SIZE G A67-BR-G MP-BA-G2
J 1.062 1.207 1990.8 TYPE 67 – SIZE J A67-BR-J MP-BA-J2
K 1.171 1.207 1990.9 TYPE 67 – SIZE K A67-BR-K MP-BA-K2
L 1.265 1.551 1990.10 TYPE 67 – SIZE L A67-BR-L MP-BA-L2
M 1.406 1.551 1990.11 TYPE 67 – SIZE M A67-BR-M MP-BA-M2
N 1.515 1.551 1990.12 TYPE 67 – SIZE N A67-BR-N MP-BA-N2
P 1.625 1.951 1990.13 TYPE 67 – SIZE P A67-AL-P MP-BA-P2
R 1.750 1.951 1990.14 TYPE 67 – SIZE R A67-BR-R MP-BA-R2
S 1.875 1.951 1990.15 TYPE 67 – SIZE S A67-BR-S MP-BA-S2
T 2.062 2.076 1990.16 TYPE 67 – SIZE T A67-BR-T MP-BA-T2
V 2.187 2.076 1990.17 TYPE 67 – SIZE V A67-BR-V MP-BA-V2

Back to Top

Safety Notes

WARNING: This product contains lead, a chemical known to the State of California to cause cancer and birth defects or other reproductive harm.
