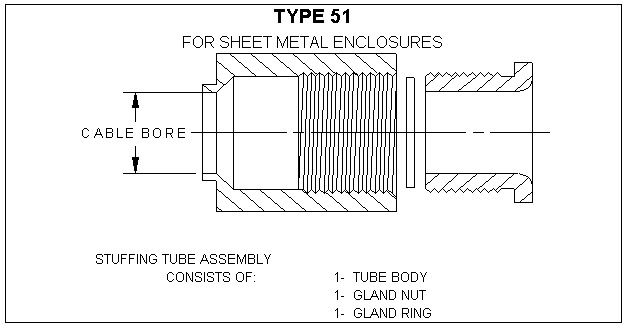

Type 51 and 51B Stuffing Tubes

View All Military & Commercial Stuffing Tubes MIL S-24235 Type 51 and 51B Stuffing Tubes

Steel
Brass
Stainless



M24235/14 STEEL STUFFING TUBES
FORMERLY TYPE 51

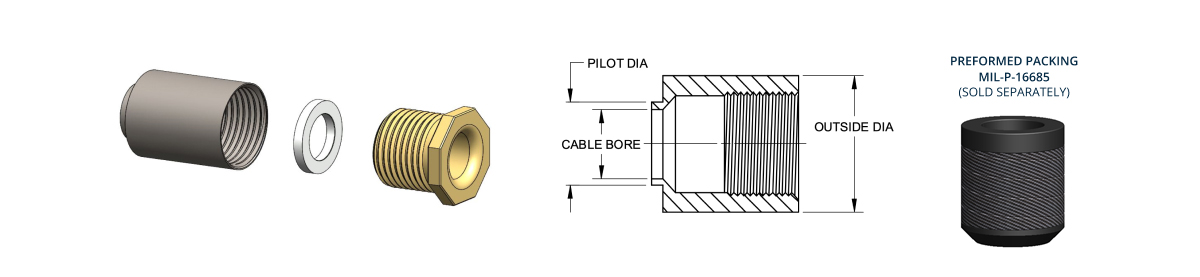

Includes: Steel Tube, Brass Gland Nut, and Zinc Plated Steel Gland Ring



MIL-S-24235-14-STUFFING-TUBES-METAL-AND-PACKING-ASSEMBLIES-FOR-ELECTRIC-CABLES-FOR-SHEET-METAL-ENCLOSURES-STEEL
Download Data Sheet

SIZE CABLE BORE PILOT DIAMETER OUTSIDE DIAMETER M24235 ASSEMBLY # PENN EL PART # PERFORMED PACKING #
A 0.406 0.660 15/16 M24235/14-121 A51-ST-A MP-BA-A2
B 0.515 0.660 1-1/16 M24235/14-122 A51-ST-B MP-BA-B2
C 0.640 0.785 1-3/16 M24235/14-123 A51-ST-C MP-BA-C2
D 0.750 0.895 1-5/16 M24235/14-124 A51-ST-D MP-BA-D2
E 0.812 0.957 1-5/16 M24235/14-125 A51-ST-E MP-BA-E2
F 0.843 0.988 1-3/8 M24235/14-126 A51-ST-F MP-BA-F2
G 0.953 1.098 1-5/8 M24235/14-127 A51-ST-G MP-BA-G2
J 1.062 1.207 1-3/4 M24235/14-128 A51-ST-J MP-BA-J2
K 1.171 1.316 1-7/8 M24235/14-129 A51-ST-K MP-BA-K2
L 1.265 1.410 1-15/16 M24235/14-130 A51-ST-L MP-BA-L2
M 1.406 1.551 2-1/8 M24235/14-131 A51-ST-M MP-BA-M2
N 1.515 1.716 2-3/16 M24235/14-132 A51-ST-N MP-BA-N2
P 1.625 1.826 2-5/16 M24235/14-133 A51-ST-P MP-BA-P2
R 1.750 1.951 2-7/16 M24235/14-134 A51-ST-R MP-BA-R2
S 1.875 2.076 2-7/8 M24235/14-135 A51-ST-S MP-BA-S2
T 2.062 2.364 3-1/16 M24235/14-136 A51-ST-T MP-BA-T2
V 2.187 2.489 3-3/16 M24235/14-137 A51-ST-V MP-BA-V2
W 2.312 2.614 3-5/16 M24235/14-138 A51-ST-W MP-BA-W2
X 2.500 2.802 3-1/2 M24235/14-139 A51-ST-X MP-BA-X2
Y 2.609 2.911 3-5/8 M24235/14-140 A51-ST-Y MP-BA-Y2
Z 2.781 3.083 3-13/16 M24235/14-141 A51-ST-Z MP-BA-Z2
AA 2.875 3.177 4-1/16 M24235/14-142 A51-ST-AA MP-BA-AA2

Back to Top





M24235/14 STEEL STUFFING TUBES
FORMERLY TYPE 51B

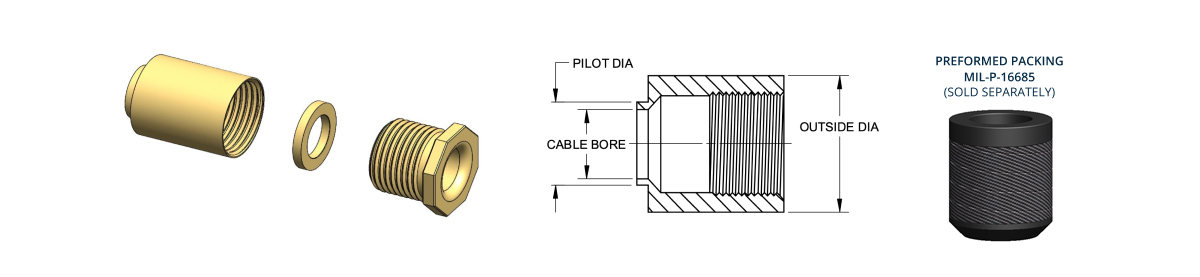

Includes: Brass Tube, Gland Nut, and Gland Ring

MIL-S-24235-14-STUFFING-TUBES-METAL-AND-PACKING-ASSEMBLIES-FOR-ELECTRIC-CABLES-FOR-SHEET-METAL-ENCLOSURES-BRASS
Download Data Sheet

SIZE CABLE BORE PILOT DIAMETER OUTSIDE DIAMETER M24235 ASSEMBLY # PENN EL PART # PERFORMED PACKING #
A 0.406 0.660 15/16 M24235/14-001 A51-BR-A MP-BA-A2
B 0.515 0.660 1-1/16 M24235/14-002 A51-BR-B MP-BA-B2
C 0.640 0.785 1-3/16 M24235/14-003 A51-BR-C MP-BA-C2
D 0.750 0.895 1-5/16 M24235/14-004 A51-BR-D MP-BA-D2
E 0.812 0.957 1-5/16 M24235/14-005 A51-BR-E MP-BA-E2
F 0.843 0.988 1-3/8 M24235/14-006 A51-BR-F MP-BA-F2
G 0.953 1.098 1-5/8 M24235/14-007 A51-BR-G MP-BA-G2
J 1.062 1.207 1-3/4 XM24235/14-008 A51-BR-J MP-BA-J2
K 1.171 1.316 1-7/8 M24235/14-009 A51-BR-K MP-BA-K2
L 1.265 1.410 1-15/16 M24235/14-010 A51-BR-L MP-BA-L2
M 1.406 1.551 2-1/8 M24235/14-011 A51-BR-M MP-BA-M2
N 1.515 1.716 2-3/16 M24235/14-012 A51-BR-N MP-BA-N2
P 1.625 1.826 2-5/16 M24235/14-013 A51-BR-P MP-BA-P2
R 1.750 1.951 2-7/16 M24235/14-014 A51-BR-R MP-BA-R2
S 1.875 2.076 2-7/8 M24235/14-015 A51-BR-S MP-BA-S2
T 2.062 2.364 3-1/16 M24235/14-016 A51-BR-T MP-BA-T2
V 2.187 2.489 3-3/16 M24235/14-017 A51-BR-V MP-BA-V2
W 2.312 2.614 3-5/16 M24235/14-018 A51-BR-W MP-BA-W2
X 2.500 2.802 3-1/2 M24235/14-019 A51-BR-X MP-BA-X2
Y 2.609 2.911 3-5/8 M24235/14-020 A51-BR-Y MP-BA-Y2
Z 2.781 3.083 3-13/16 M24235/14-021 A51-BR-Z MP-BA-Z2
AA 2.875 3.177 4-1/16 M24235/14-022 A51-BR-AA MP-BA-AA2

Back to Top





M24235/14 STAINLESS STEEL STUFFING TUBES

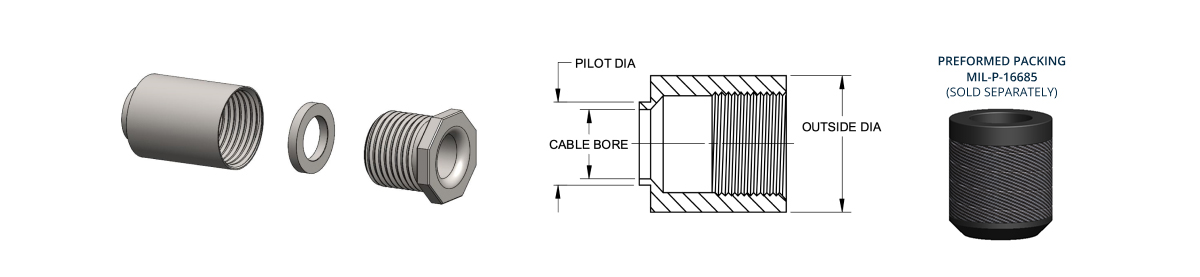

Includes: Stainless Tube, Gland Nut, and Gland Ring

MIL-S-24235-14-STUFFING-TUBES-METAL-AND-PACKING-ASSEMBLIES-FOR-ELECTRIC-CABLES-FOR-SHEET-METAL-ENCLOSURES-STAINLESS-STEEL
Download Data Sheet

SIZE CABLE BORE PILOT DIAMETER OUTSIDE DIAMETER M24235 ASSEMBLY # PENN EL PART # PERFORMED PACKING #
A 0.406 0.660 15/16 M24235/14-121 MOD A51-SS-A MP-BA-A2
B 0.515 0.660 1-1/16 M24235/14-122 MOD A51-SS-B MP-BA-B2
C 0.640 0.785 1-3/16 M24235/14-123 MOD A51-SS-C MP-BA-C2
D 0.750 0.895 1-5/16 M24235/14-124 MOD A51-SS-D MP-BA-D2
E 0.812 0.957 1-5/16 M24235/14-125 MOD A51-BR-E MP-BA-E2
F 0.843 0.988 1-3/8 M24235/14-126 MOD A51-SS-F MP-BA-F2
G 0.953 1.098 1-5/8 M24235/14-127 MOD A51-SS-G MP-BA-G2
J 1.062 1.207 1-3/4 XM24235/14-128 MOD A51-SS-J MP-BA-J2
K 1.171 1.316 1-7/8 M24235/14-129 MOD A51-SS-K MP-BA-K2
L 1.265 1.410 1-15/16 M24235/14-130 MOD A51-SS-L MP-BA-L2
M 1.406 1.551 2-1/8 M24235/14-131 MOD A51-SS-M MP-BA-M2
N 1.515 1.716 2-3/16 M24235/14-132 MOD A51-SS-N MP-BA-N2
P 1.625 1.826 2-5/16 M24235/14-133 MOD A51-SS-P MP-BA-P2
R 1.750 1.951 2-7/16 M24235/14-134 MOD A51-SS-R MP-BA-R2
S 1.875 2.076 2-7/8 M24235/14-135 MOD A51-SS-S MP-BA-S2
T 2.062 2.364 3-1/16 M24235/14-136 MOD A51-SS-T MP-BA-T2
V 2.187 2.489 3-3/16 M24235/14-137 MOD A51-SS-V MP-BA-V2
W 2.312 2.614 3-5/16 M24235/14-138 MOD A51-SS-W MP-BA-W2
X 2.500 2.802 3-1/2 M24235/14-139 MOD A51-SS-X MP-BA-X2
Y 2.609 2.911 3-5/8 M24235/14-140 MOD A51-SS-Y MP-BA-Y2
Z 2.781 3.083 3-13/16 M24235/14-141 MOD A51-SS-Z MP-BA-Z2
AA 2.875 3.177 4-1/16 M24235/14-142 MOD A51-SS-AA MP-BA-AA2

Back to Top

Safety Notes

WARNING: This product contains lead, a chemical known to the State of California to cause cancer and birth defects or other reproductive harm.
