Preformed Packing for Military Tubes

View All Packing for Stuffing Tubes MIL-P-16885 Preformed Packing for Military Tubes

Type I
Type II



MIL-P-16685 PREFORMED PACKING – CLASS 2 – TYPE I

Stuffing Tube Applications: M24235/9 M24235/10 M24235/12 M24235/17 M24235/18

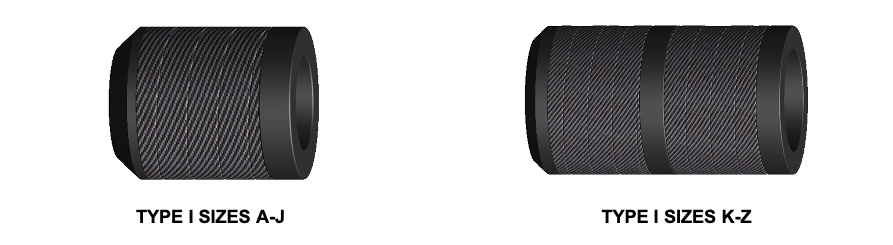

PACKING - CLASS 2 - TYPE I - PREFORMED



Download Data Sheet

SIZE OUTSIDE DIAMETER INSIDE DIAMETER LENGTH MIL-P 16685 PART NUMBER PACKAGE QTY PENN EL PART NUMBER
A .750 .375 1 3/8 M 16685-2-1-A 8 MP-BA-A1
B .875 .480 1 3/8 M 16685-2-1-B 8 MP-BA-B1
C 1.000 .610 1 3/8 M 16685-2-1-C 8 MP-BA-C1
D 1.125 .719 1 3/8 M 16685-2-1-D 8 MP-BA-D1
E 1.125 .778 1 3/8 M 16685-2-1-E 8 MP-BA-E1
F 1.187 .812 1 3/8 M 16685-2-1-F 8 MP-BA-F1
G 1.375 .911 1 3/8 M 16685-2-1-G 8 MP-BA-G1
J 1.500 1.037 1 3/8 M 16685-2-1-J 8 MP-BA-J1
K 1.625 1.120 2 5/8 M 16685-2-1-K 4 MP-BA-K1
L 1.687 1.232 2 5/8 M 16685-2-1-L 4 MP-BA-L1
M 1.875 1.375 2 5/8 M 16685-2-1-M 4 MP-BA-M1
N 1.937 1.474 2 5/8 M 16685-2-1-N 4 MP-BA-N1
P 2.062 1.586 2 5/8 M 16685-2-1-P 4 MP-BA-P1
R 2.187 1.681 2 5/8 M 16685-2-1-R 4 MP-BA-R1
S 2.562 1.820 4 5/8 M 16685-2-1-S 2 MP-BA-S1
T 2.750 2.030 4 5/8 M 16685-2-1-T 2 MP-BA-T1
V 2.875 2.142 4 5/8 M 16685-2-1-V 2 MP-BA-V1
W 3.000 2.280 4 5/8 M 16685-2-1-W 2 MP-BA-W1
X 3.125 2.427 4 5/8 M 16685-2-1-X 2 MP-BA-X1
Y 3.250 2.545 4 5/8 M 16685-2-1-Y 2 MP-BA-Y1
Z 3.437 2.673 4 5/8 M 16685-2-1-Z 2 MP-BA-Z1
AA 3.540 2.688 6 3/8 M 16685-2-1-AA 1 MP-BA-AA1
BB 3.874 3.124 6 3/8 M 16685-2-1-BB 1 MP-BA-BB1

Back to Top





MIL-P-16685 PREFORMED PACKING – CLASS 2 – TYPE II

Stuffing Tube Applications: M24235/13 M24235/14 TYPE 64 & 65 TYPE 66 & 67

TYPE-2-ALL-SIZES
Download Data Sheet

SIZE OUTSIDE DIAMETER INSIDE DIAMETER LENGTH MIL-P 16685 PART NUMBER PACKAGE QTY PENN EL PART NUMBER
A .750 .375 1 1/8 M 16685-2-2-A 10 MP-BA-A2
B .875 .480 1 1/8 M 16685-2-2-B 10 MP-BA-B2
C 1.000 .610 1 1/8 M 16685-2-2-C 10 MP-BA-C2
D 1.125 .719 1 1/8 M 16685-2-2-D 10 MP-BA-D2
E 1.125 .778 1 1/8 M 16685-2-2-E 10 MP-BA-E2
F 1.187 .812 1 1/8 M 16685-2-2-F 10 MP-BA-F2
G 1.375 .911 1 1/8 M 16685-2-2-G 10 MP-BA-G2
J 1.500 1.037 1 1/8 M 16685-2-2-J 10 MP-BA-J2
K 1.625 1.120 1 3/8 M 16685-2-2-K 8 MP-BA-K2
L 1.687 1.232 1 3/8 M 16685-2-2-L 8 MP-BA-L2
M 1.875 1.375 1 3/8 M 16685-2-2-M 8 MP-BA-M2
N 1.937 1.474 1 3/8 M 16685-2-2-N 8 MP-BA-N2
P 2.062 1.586 1 3/8 M 16685-2-2-P 8 MP-BA-P2
R 2.187 1.681 1 3/8 M 16685-2-2-R 8 MP-BA-R2
S 2.562 1.820 2 1/8 M 16685-2-2-S 5 MP-BA-S2
T 2.750 2.030 2 1/8 M 16685-2-2-T 5 MP-BA-T2
V 2.875 2.142 2 1/8 M 16685-2-2-V 5 MP-BA-V2
W 3.000 2.280 2 1/8 M 16685-2-2-W 5 MP-BA-W2
X 3.125 2.427 2 1/8 M 16685-2-2-X 5 MP-BA-X2
Y 3.250 2.545 2 1/8 M 16685-2-2-Y 5 MP-BA-Y2
Z 3.437 2.673 2 1/8 M 16685-2-2-Z 5 MP-BA-Z2
AA 3.540 2.688 6 3/8 M 16685-2-2-AA 2 MP-BA-AA2

PACKING ALSO AVAILABLE IN SPOOLS FOR COMPOSITIONS A AND B – SEE CLASS I PACKING

Back to Top

Safety Notes

WARNING: This product contains lead, a chemical known to the State of California to cause cancer and birth defects or other reproductive harm.
